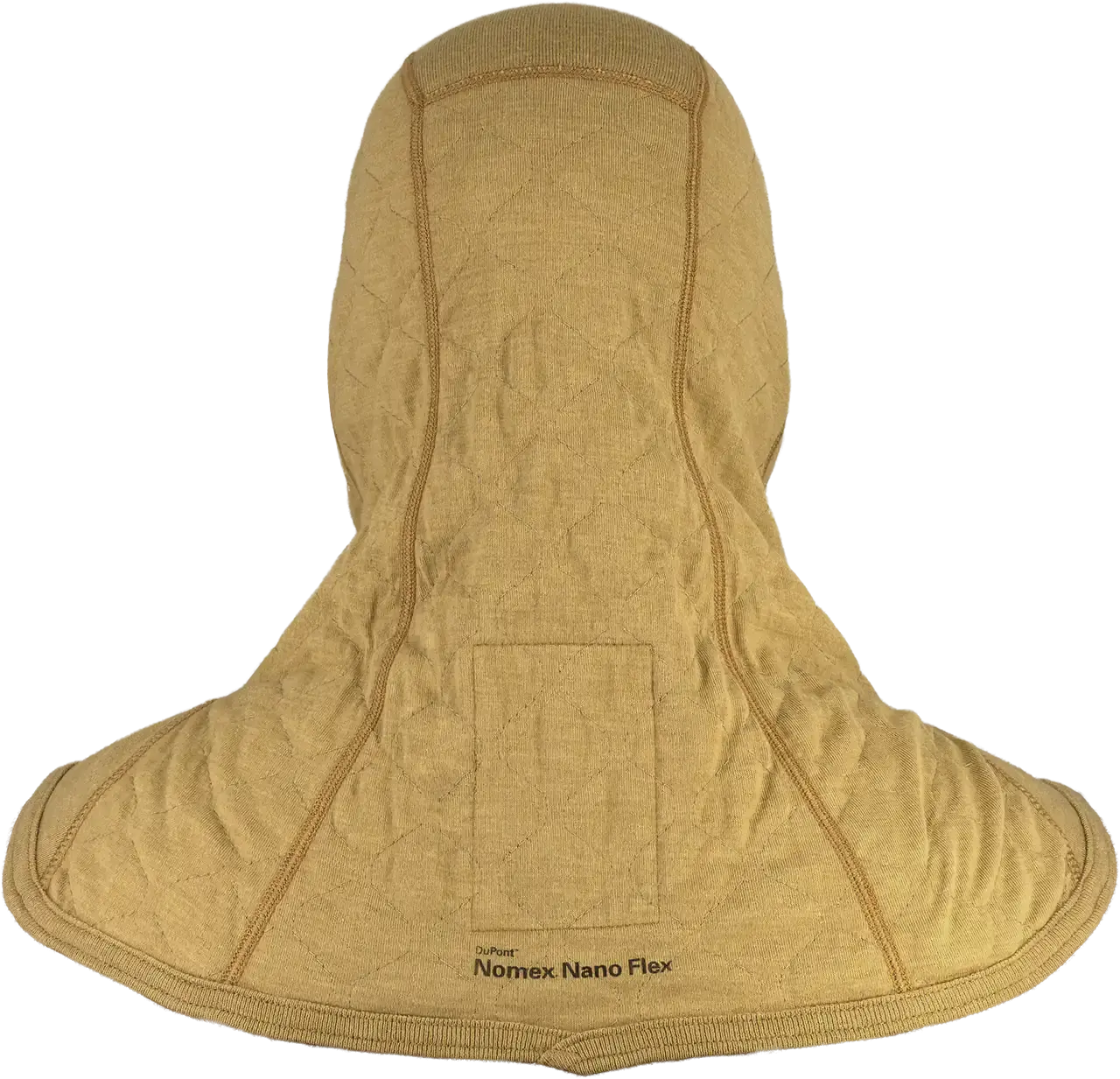

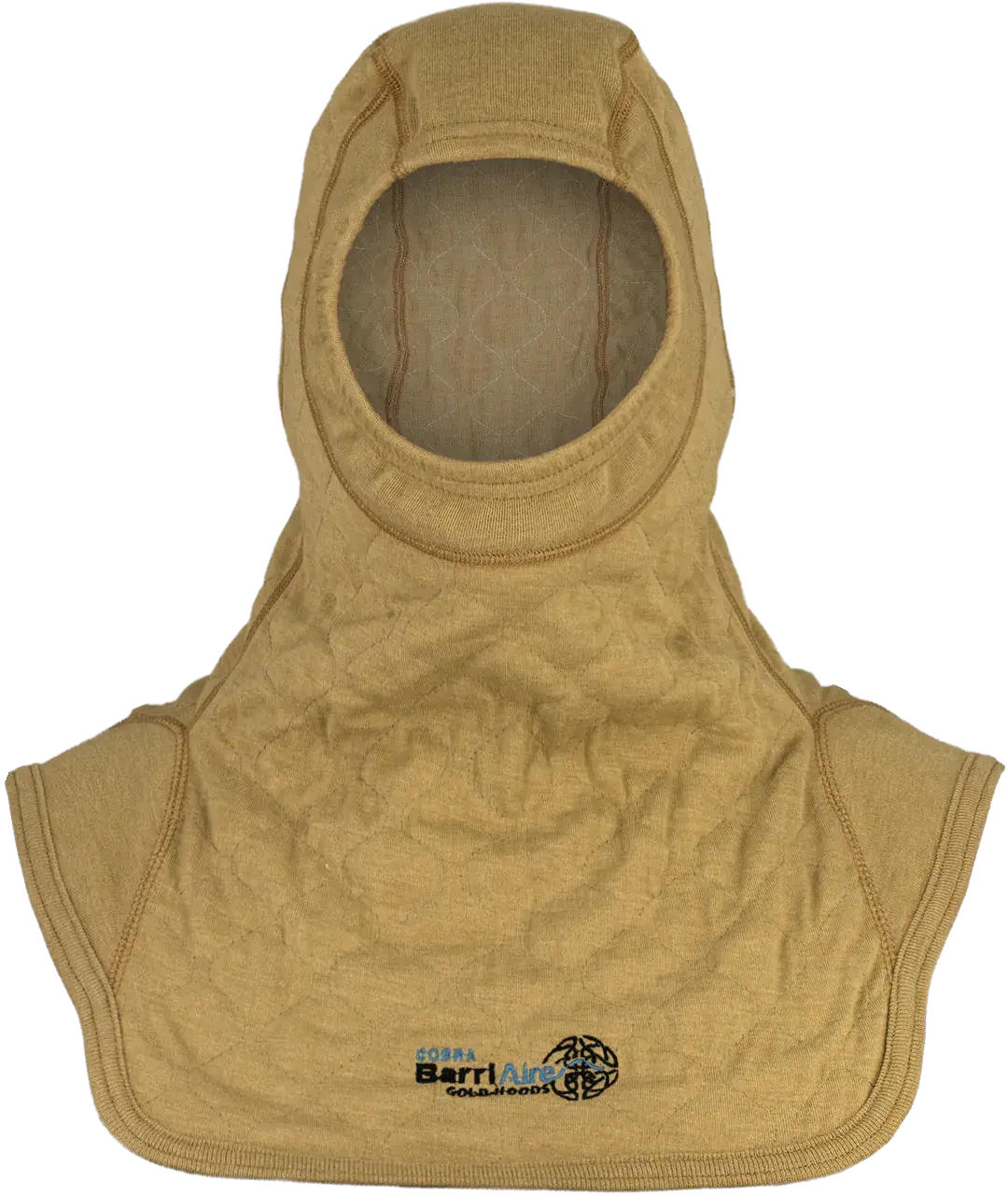

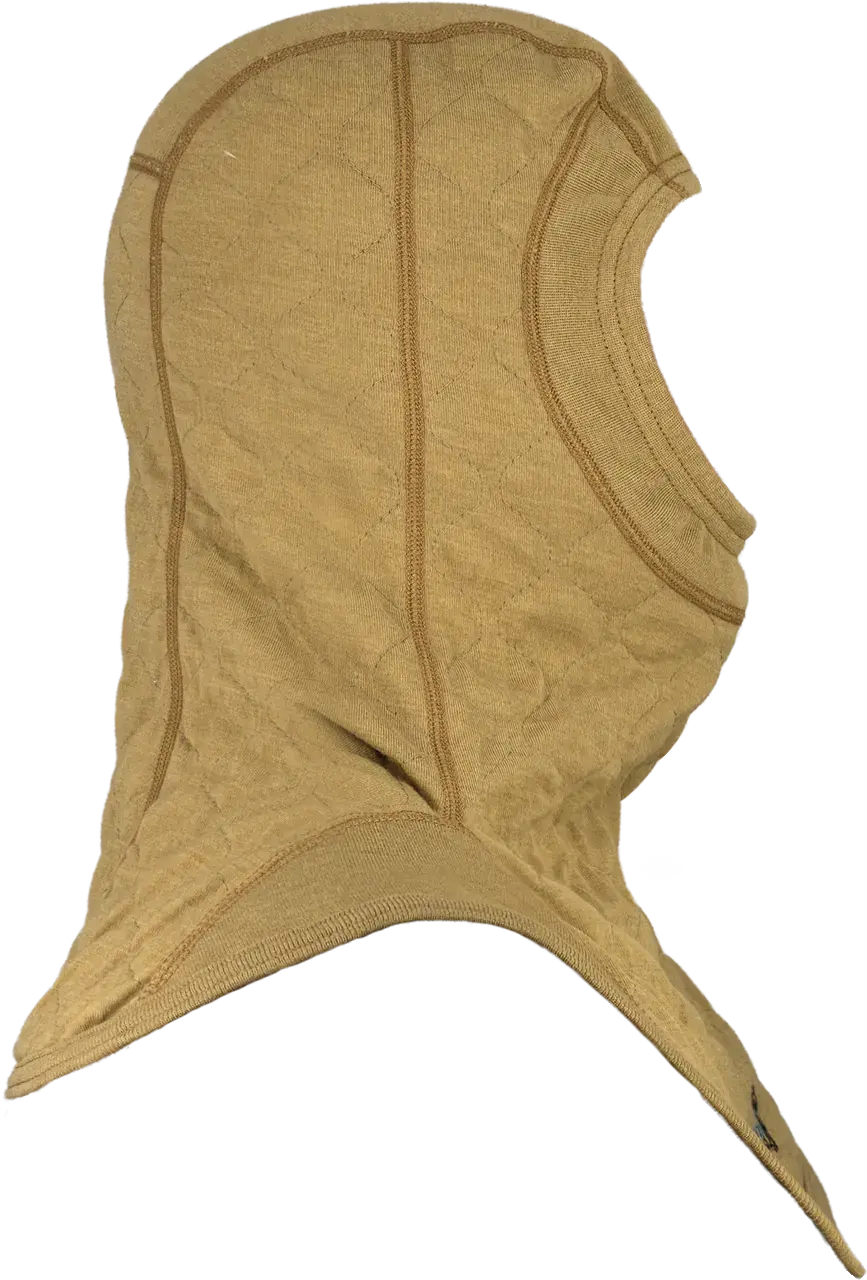

BarriAire™ Gold Particulate Hood Complete Coverage

Standard Bib with Rib Knit Face Opening

39700-00-194071

Particulate coverage includes entire head except for Sure‑Fit™ panel at crown.

Fabric Description:

Quilted composite with PFAS-free durable water resistant finish on the exterior layer and a dual-technology antimicrobial and anti-odor finish on the inside layer with Nomex® Nano Flex between layers for excellent stretch, recovery and odor control. Highest air permeability of particulate fire hoods on the market at 23 cfm, approximately 3-6 times greater than PTFE laminated hoods. Averages 97.4% particulate efficiency for particulates between 0.1 and 1.0 microns. PGI quilted BarriAire composite fabrics recently achieved Viral Filtration Efficiency (VFE) Rating of 96.8% and Bacterial Filtration Efficiency (BFE) Rating of 97.9% (as conducted by Nelson Labs, U.S.A.). NFPA 70E Hazard Risk Category 4.

Sizing:

One size fits most

Options:

Direct Embroidery
100% Nomex® thread embroidered on bib. Minimum order 25 each.
Ink Heat Transfers
High resolution multi-color transfers. Minimum order 100 each.
RFID Sewn In Tag
Available for CE & UKCA certified hoods.
CE and UKCA markings on label
When ordering, please request “Option 47” to add the CE and UKCA markings to the label.

39700-00-194071 Declaration of Conformity - 2020
39700-00-194071 EU Certificate - 2020
39700-00-194071 UKCA Certificate - 2022
UKCA Quality System Certificate - 2022

Technology

Videos

Test Results

Fabric Performance ValuesPGI Test Results
Particulate Efficiency
  • Lowest Average as Received
97.4%
  • Lowest Average after 10 Launderings
97.3%
Viral & Bacterial Filtration Efficiency
  • Viral Filtration Efficiency (VFE)
96.8%
  • Bacterial Filtration Efficiency (BFE)
97.9%
Air Permeability (As Received)23 cfm
Thermal Protective Performance (TPP)

Quilted Composite

  • As Received
25.7

Rib Knit

  • As Received
30.2
  • After 5 Washings
33.1
Total Heat Loss (THL) 379.5 W/m2
Hood Material Burst Strength 1352 N
Flame Resistance Test – Quilted Composite

After Flame (Wales x Courses)

  • As Received
0.3 sec x 0.7 sec
  • After 5 Washings
1.3 sec x 1.0 sec

Char Length (Wales x Courses)

  • As Received
27 mm x 4 mm
  • After 5 Washings
7 mm x 3 mm
Cleaning Shrinkage Resistance Test

Hood Measurement

  • After 5 Washings
-0.3%

Face Opening Measurement

  • After 5 Washings
YES
Heat & Thermal Shrinkage Resistance Test

Hood Measurement

  • As Received
0.0%
  • After 5 Washings
0.0%

Face Opening Measurement

  • As Received
YES
  • After 5 Washings
YES
Limited Oxygen Index (LOI)
  • Rib Knit
31
  • Nomex® Nano Flex
40
Seam Breaking Strength Test
  • Quilted to Quilted
1064 N
  • Quilted to Rib Knit
1325 N
Melt or Drip When Exposed to Flame NONE
Arc Thermal Performance Value (ATPV)46 cal/cm2
NFPA 70E Hazard Risk Category (HRC)HRC 4

Technology

High Magnification Fiber Comparison

Nomex® Nano Flex material consists of nonwoven, submicron, continuous nano-fibers and is inherently flame resistant. It is thinner and lighter weight than typical nonwoven materials. Nomex® Nano Flex is highly breathable and combines exceptional elasticity with superior particulate blocking performance.

Fluorescent Aerosol Screening Test

FAST UV-light photographs without Nomex® Nano Flex (left) and with Nomex® (right) illustrating after particle exposure for the test subject’s head and neck; bright yellow areas show were particles penetrated the ensemble.

Videos

BarriAire™ Gold Burn Tests

The flame protection of PGI's BarriAire™ Gold Rib Knit and 3-Ply Composite is tested at over 2000° F — the results speak for themselves.

DuPont™ Thermo-Man® System

The flame protection of PGI's BarriAire™ Gold hood surpasses the standard 3‑second test under ASTM F1930. This video shows how the BarriAire™ Gold hood stands up to the exponential threat in this 10‑second ASTM F1930 burn.

Donning BarriAire™ Gold Hood - Over Mask

Rib knit completely wraps the face piece, offering better stretch and recovery.

Donning BarriAire™ Gold Hood - In Channel

Designed for optimal fit within the fubber gasket of most SCBA masks.

Product Line

BarriAire™ Gold Particulate Hood

BarriAire™ Gold Hoods

BarriAire<sup>™</sup> Carbon Shield™ Particulate Hood

BarriAire™ Carbon Shield™ Hoods

BarriAire™ Particulate Mask

BarriAire™ Masks

BarriAire™ Comfort Plus Neck Gaiter/Bandanna

BarriAire™ Neck Gaiters/Bandannas

Particulate Protection

BarriAire™ Particulate Barrier Technology products offer more protection, comfort and value. BarriAire™ particulate products combine two layers of proven flame resistant fabric and a middle layer of ultra-lightweight DuPont™ Nomex® Nano Flex fabric which blocks penetration of 97.4% (BarriAire™ Gold quilted composite) to 99.9% (BarriAire™ Carbon Shield™ laminated composite) of harmful submicron size particulates. BarriAire™ Gold quilted composite fabrics recently achieved Viral Filtration Efficiency (VFE) Rating of 96.8% and Bacterial Filtration Efficiency (BFE) Rating of 97.9% (VFE and BFE testing as conducted by Nelson Labs, U.S.A.).
